CENTENNIAL PARK

LARC-512 Construction Documents | Professor Hakeem Wilson | Autumn 2025

Autodesk AutoCAD

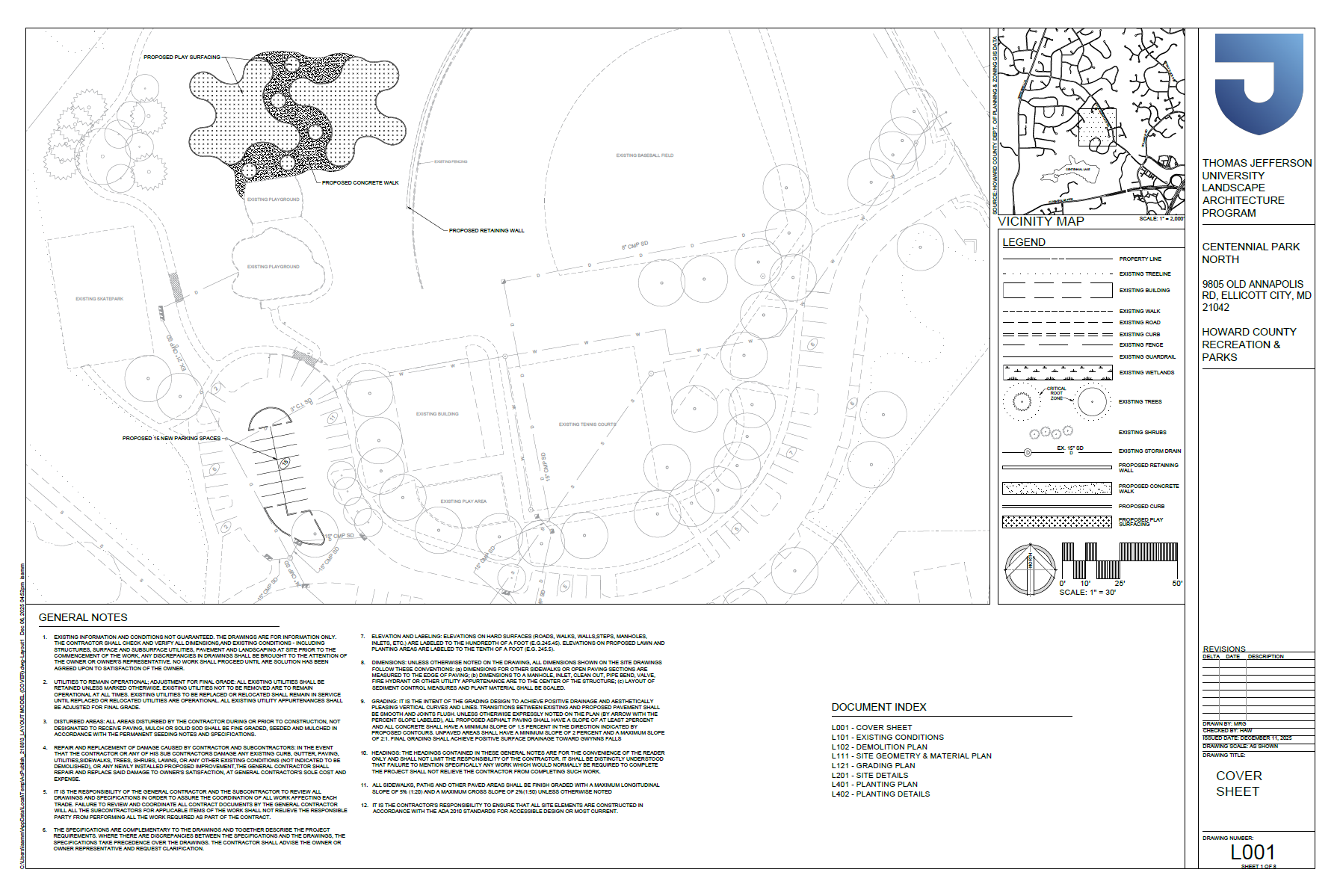

Screenshot 2025-12-30 092919.png

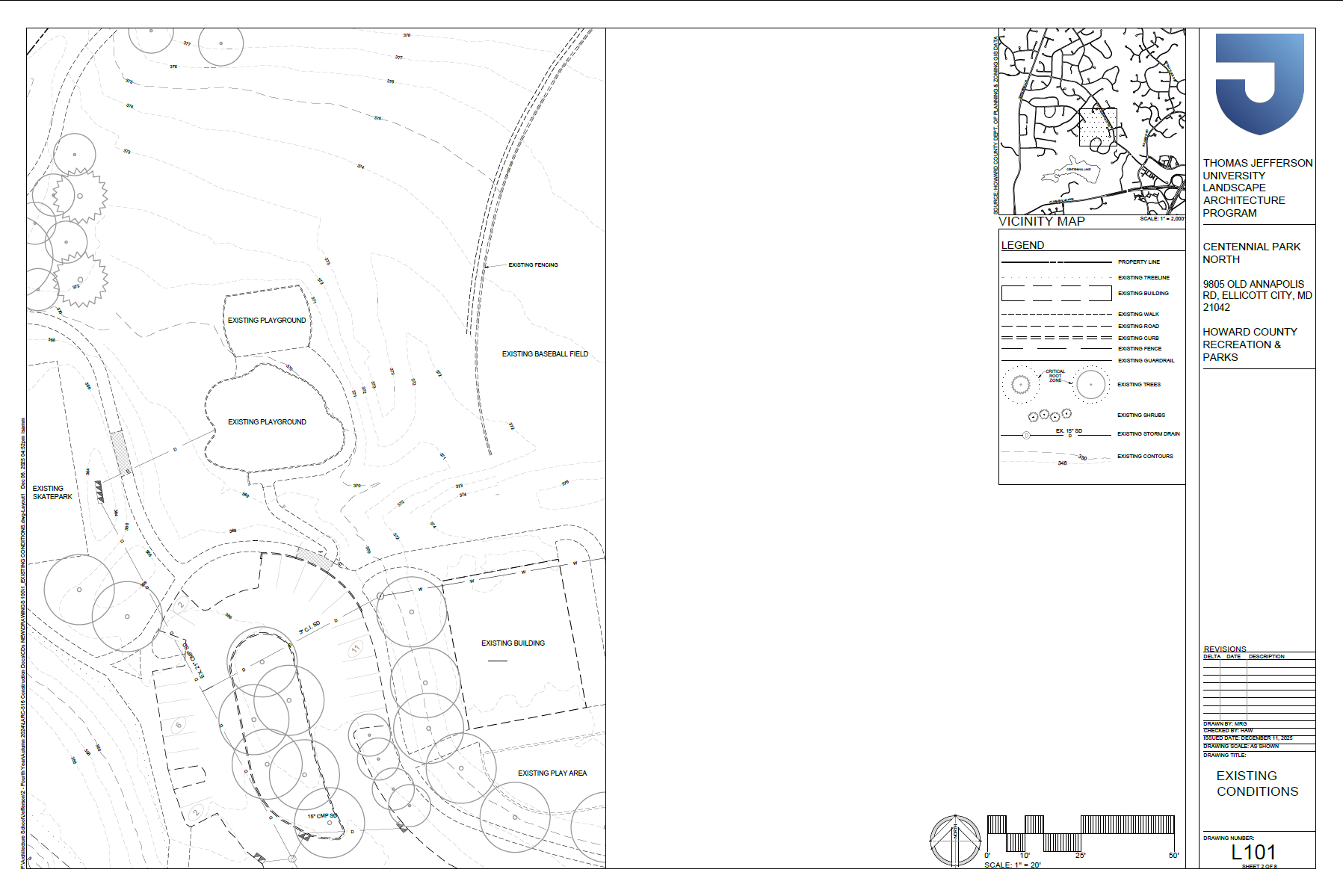

Screenshot 2025-12-30 092934.png

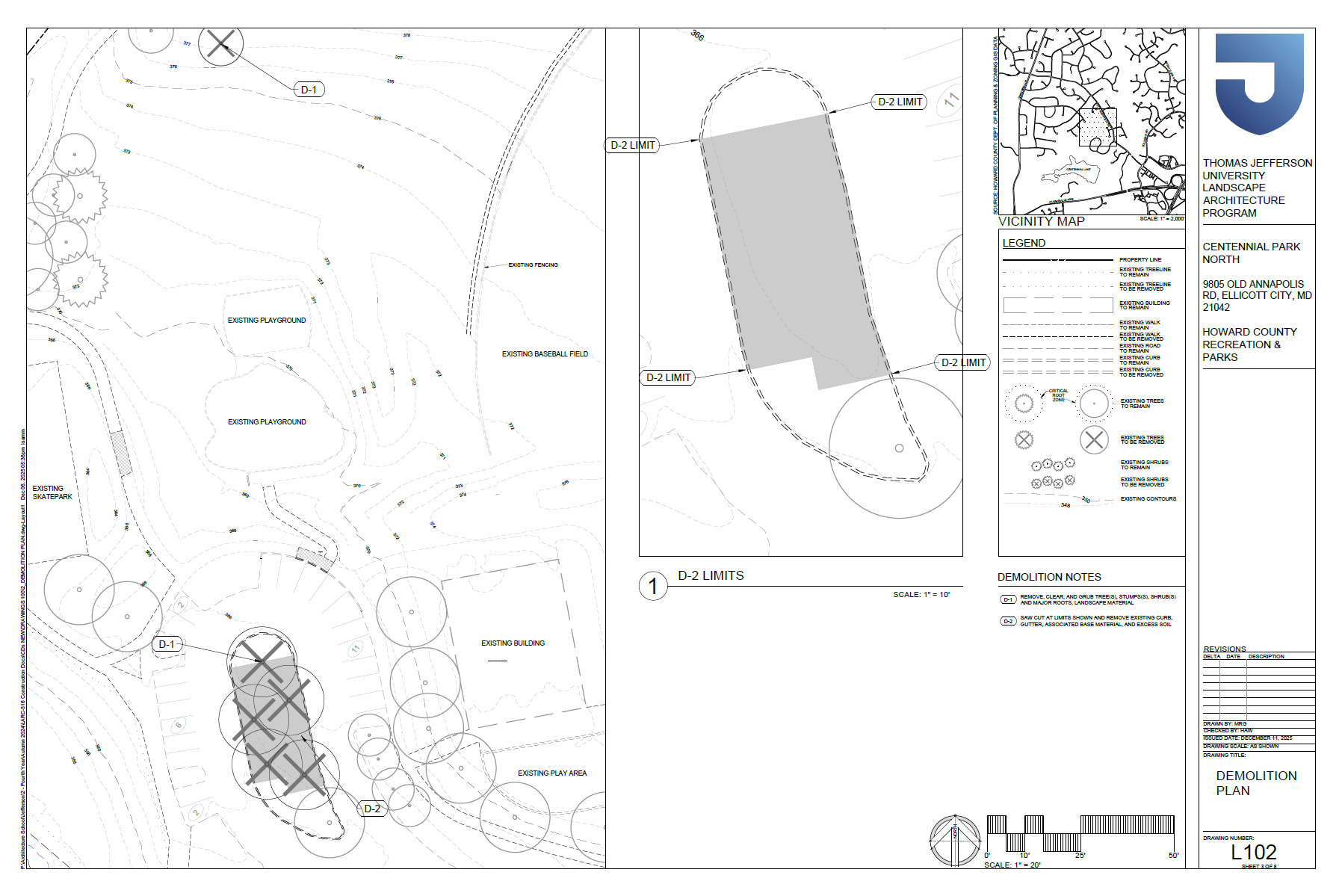

Screenshot 2025-12-30 092943.png

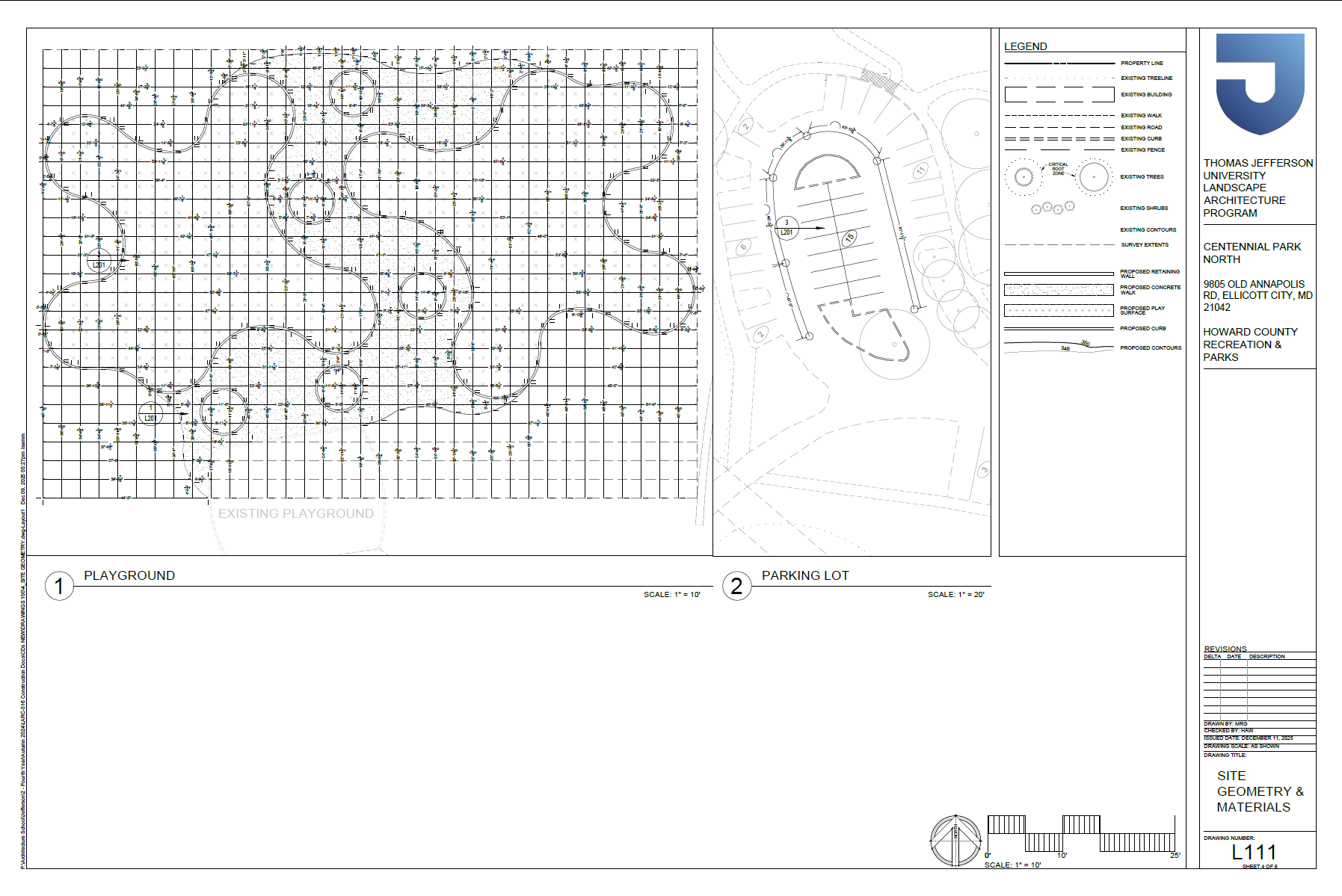

Screenshot 2025-12-30 092953.png
Screenshot 2025-12-30 093002.png

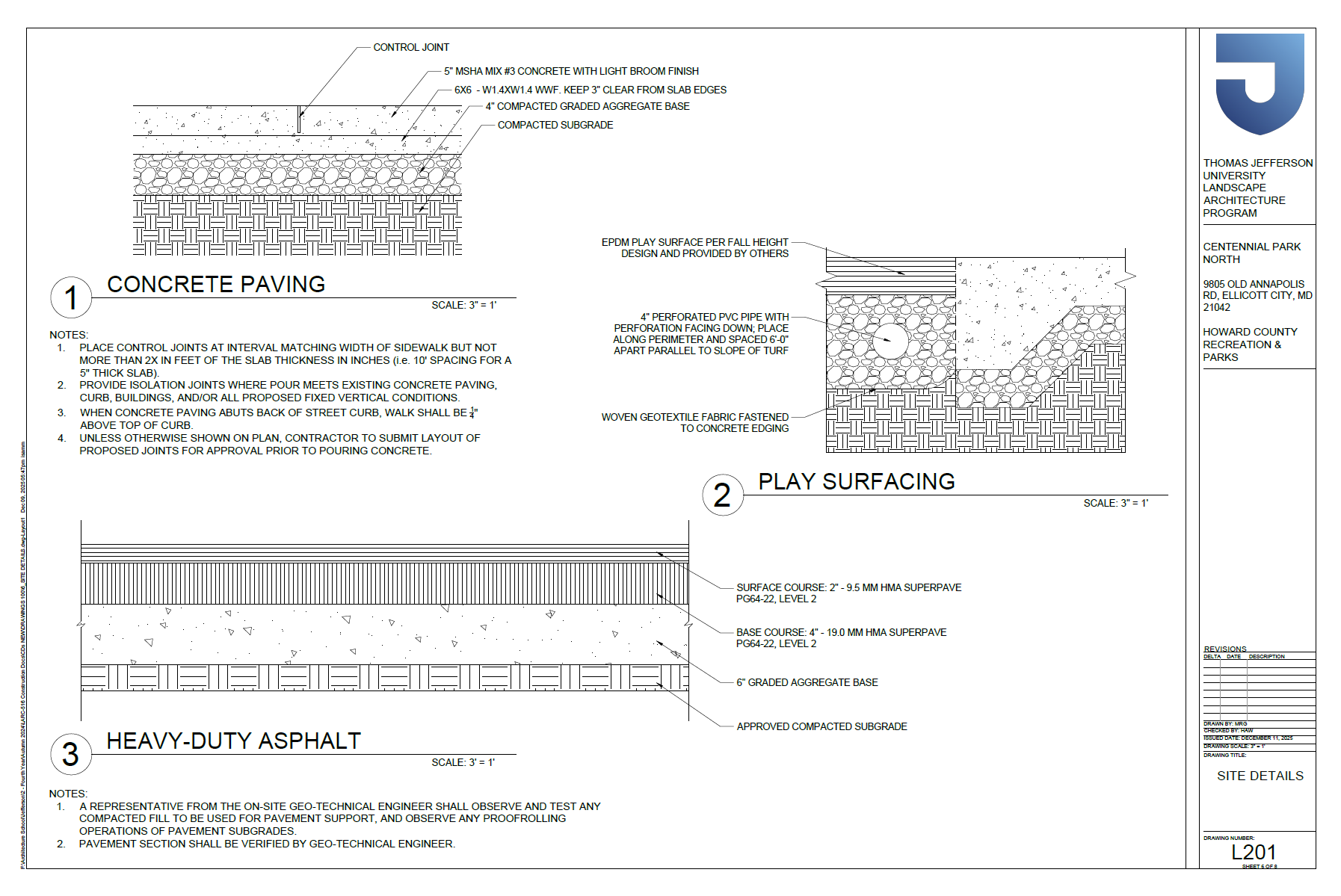

Screenshot 2025-12-30 093012.png

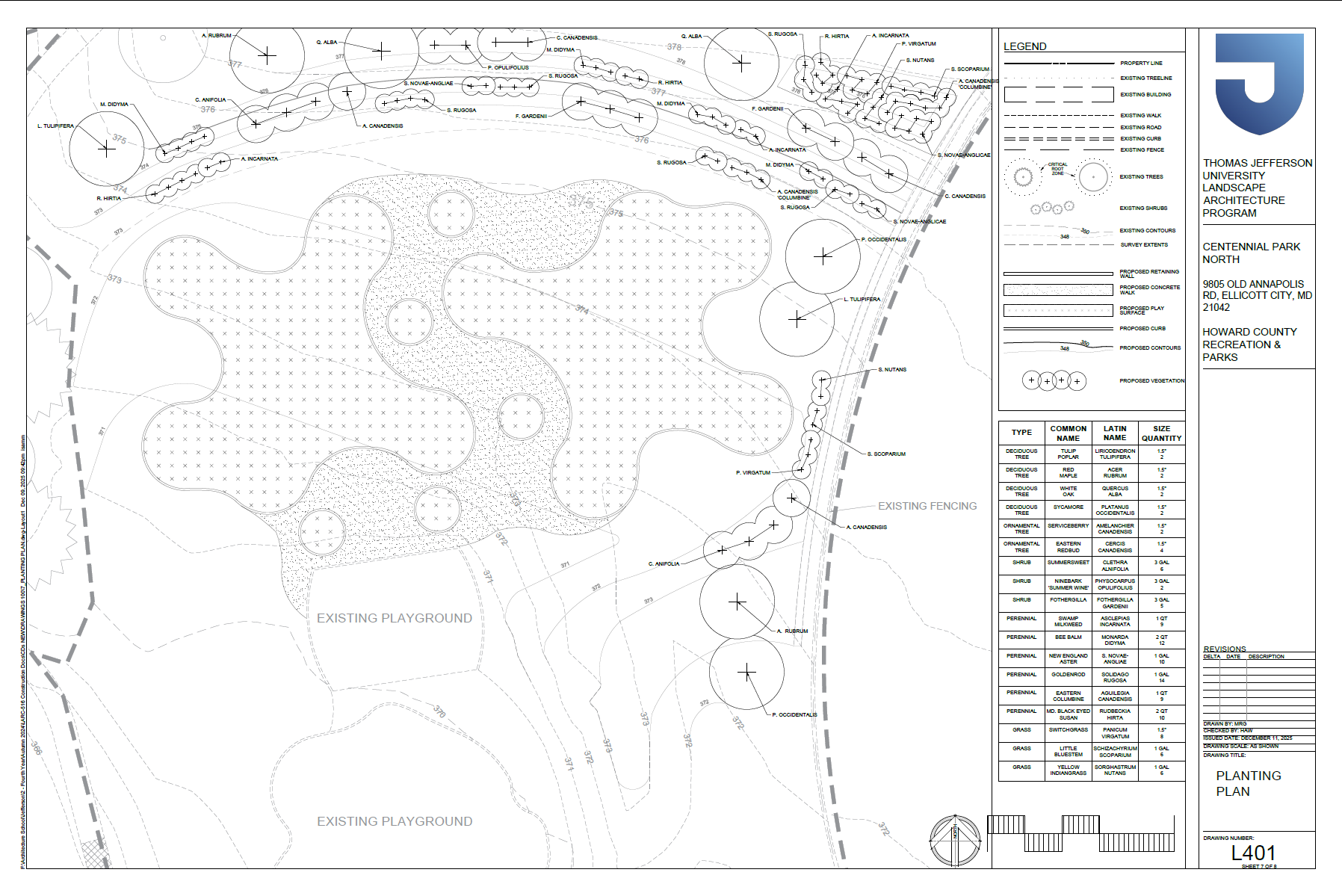

Screenshot 2025-12-30 093022.png

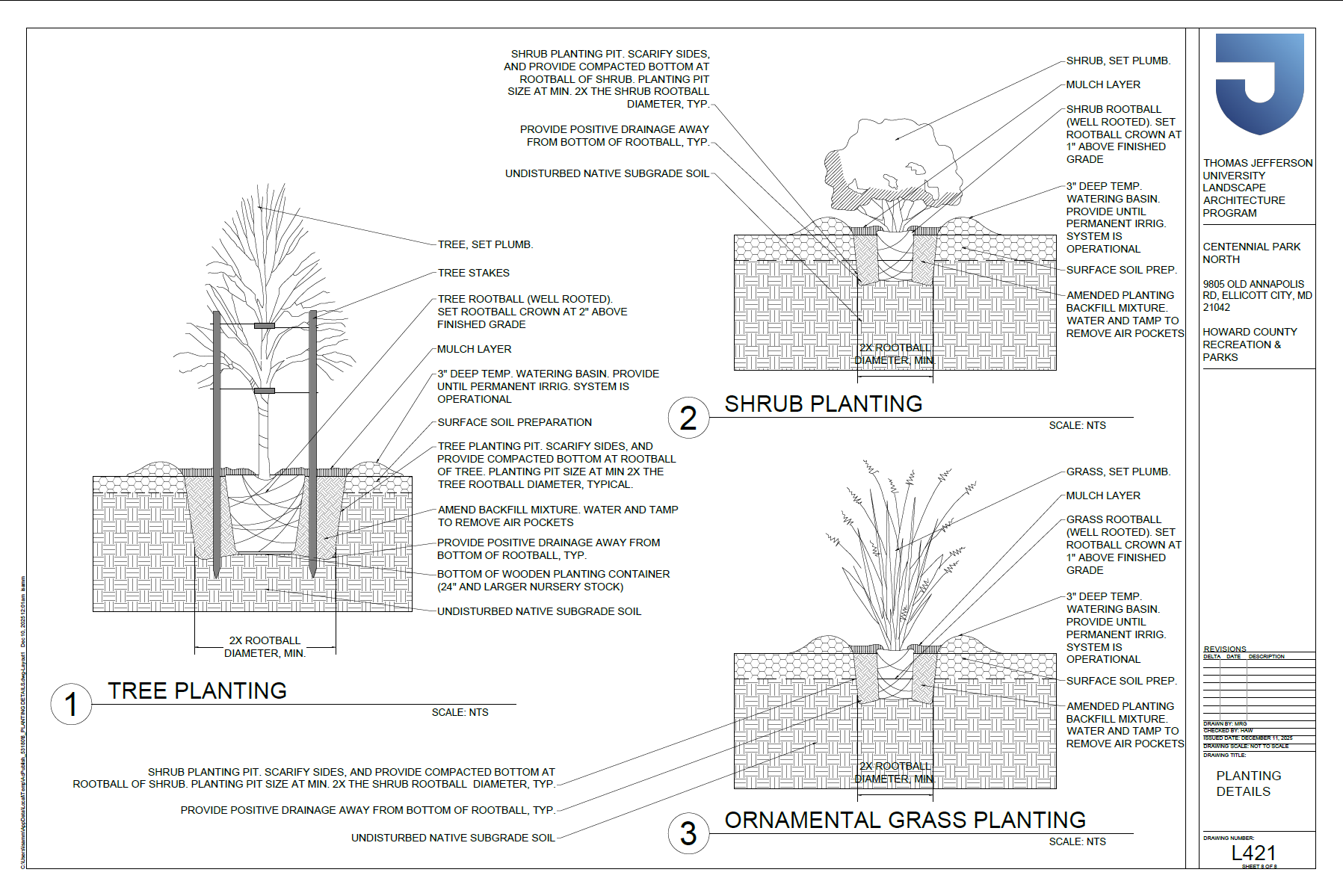

Screenshot 2025-12-30 093031.png
